တည်နေရာ	-	အမှတ်(၄၇၆)၊မိုးကုတ်လမ်း၊ (၂၃)ရပ်ကွက်၊ တောင်ဒဂုံစက်မှုဇုန်(၁)၊ ဒဂုံမြို့သစ်(တောင်ပိုင်း)မြို့နယ်၊ ရန်ကုန်တိုင်းဒေသကြီး။
အကျယ်အဝန်း	-	၆.၉၂၇    ဧက
စက်ရုံမြေ	-	၆.၉၂၇    ဧက
ထုတ်ကုန်အမျိုးအစား	-	Solar Panels, Solar Street Light

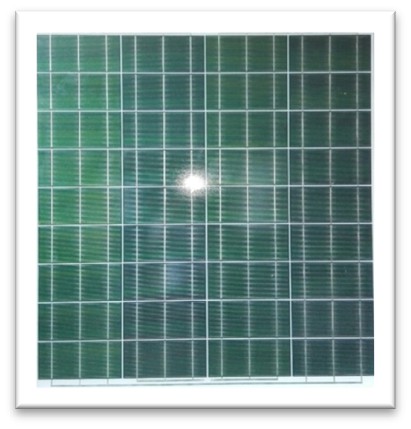

Solar Module (92 Watt) (CIGS)

Maximum Power	-	92 Watt
Maximum Voltage	-	16.87 V
Open Circuit Voltage	-	22.89 V
Maximum Current	-	5.4 A
Short Circuit Current	-	6.7 A
Dimension	-	890 x 1010 x 35 (mm)
Weight	-	11 kg
Price	-	78,200 Kyats

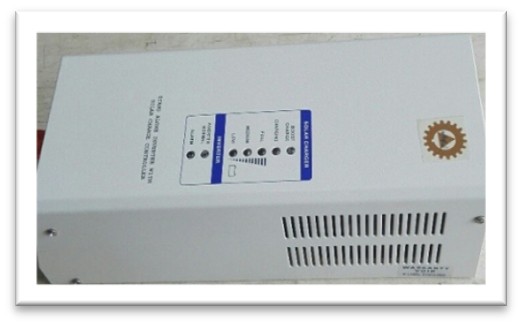

Controller With Inverter S-120 A (150 Watt)

Input Nominal Voltage (DC)	-	12 V
Input Voltage Range (DC)	-	0-23 V
Output Power Continuous	-	150 VA/150 Watt
Output Voltage Range (AC)	-	220 V ± 3% (230 Voption)
Output Max; Charge Current	-	10 A
Dimension (L x W x H)	-	11 x 29.5 x 10 (cm)
Price	-	67500 Kyats

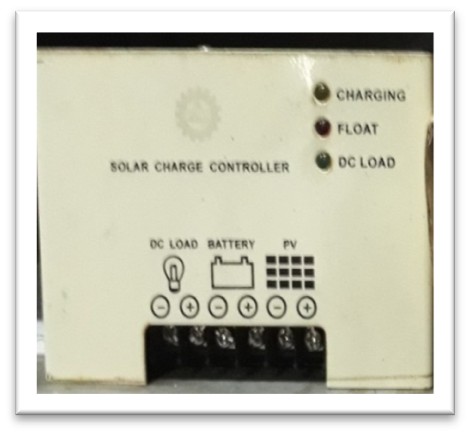

Controller (SET - 1205, 60 Watt)

Input Nominal Voltage (DC)	-	12 V ~ 26 V
Input Maximum Current	-	5 A
Output Nominal Voltage (DC)	-	12 V
Output Maximum Current	-	5 A
Charging Voltage	-	12 V
Power Consumption	-	20 mA
DC Load Maximum Current	-	5 A
Dimension (L x W x H)	-	137 x 93 x 40 (cm)
Price	-	13,500 Kyats



Controller SB - 1206 A (72 Watt)

Input Nominal Voltage (DC)	-	12 V
Input Maximum Current	-	6 A
Output Nominal Battery Voltage (DC)	-	12 V
Output Chatging Current	-	6 A
Output Battery Power Consumption	-	< 7mA
DC Load Maximum Current	-	10 A
Dimension (L x W x H) (mm)	-	136 x 94 x 45
Price	-	16,200 Kyats

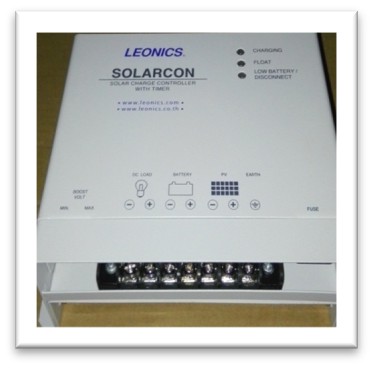

Controller (SET - 1220, 240 Watt)

Input Nominal Voltage	-	12 V
Input Maximum Voltage	-	22 V
Output to Battery Maximum Current	-	22 A
Nominal Voltage (DC)	-	12 V
Maximum Current (DC)	-	10 A
Power Consumption	-	20 mA
Dimension (L x W x H) (mm)	-	190 x 140 x 68
Price	-	54,000 Kyats

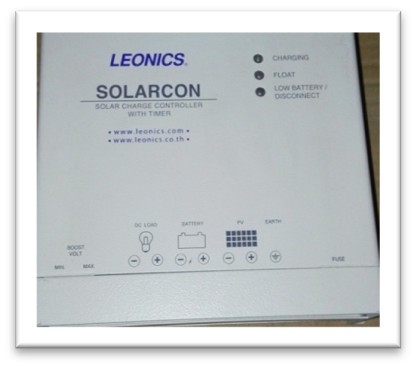

Controller (SET - 2420, 480 Watt)

Input Nominal Voltage	-	24 V
Input Maximum Voltage	-	44 V
Input Maximum Cuttent	-	22 A
Output to Battery Maximum Current	-	22 A
Nominal Voltage (DC)	-	24 V
Maximum Current (DC)	-	10 A
Power Consumption	-	20 mA
Dimension (L x W x H) (mm)	-	190 x 140 x 68
Price	-	108,000 Kyats



Controller (SET - 4810, 480 Watt)

Input Inverter Nominal Voltage (DC)	-	48 V
Input Maximum Voltage	-	88 V
Input Maximum Cuttent	-	10 A
Output to Battery Maximum Current	-	10 A
Nominal Voltage (DC)	-	48 V
Maximum Current (DC)	-	10 A
Power Consumption	-	30 mA
Dimension (L x W x H) (mm)	-	160 x 97 x 40
Price	-	108,000 Kyats

Controller (SET - 4820, 960 Watt)

Input Nominal Voltage	-	48 V
Input Maximum Voltage	-	88 V
Input Maximum Cuttent	-	20 A
Output to Battery Maximum Current	-	20 A
Nominal Voltage (DC)	-	48 V
Maximum Current (DC)	-	10 A
Power Consumption	-	30 mA
Dimension (L x W x H) (mm)	-	190 x 140 x 68
Price	-	216,000 Kyats

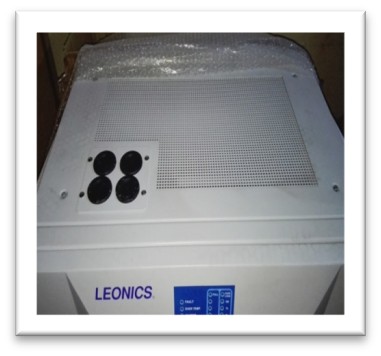

Inverter S 219 C (5000 Watt)



Input Inverter Nominal Voltage (DC)	-	48 V
Input Inverter Voltage (DC)	-	40 V ~ 58 V
Input Charger Nominal Voltage (AC)	-	220 A
Input Charger Voltage Range (AC)	-	176 V ~ 265 V
Output Inverter Power Continuous	-	5 kVA/ 5 kW
Output Inverter Voltage (AC)	-	220 V ± 1%
Output Charger Nominal Voltage (DC)	-	48 V
Output Charging Current	-	52 A
Power Consumption	-	20 mA
Dimension (L x W x H) (mm)	-	60 x 86.5 x 46
Price	-	1,125,000 Kyats

Solar Street Light (9 ft)

Solar Module	-	32 Watt
Controller (S-1205)	-	12 V, 5 A
Low Power LED Pole & Accessories	-	10 Watt
Price	-	129,780 Kyats

Solar Street Light (9 ft) Accessories

မီးလုံး

Price - 25,000 Kyats

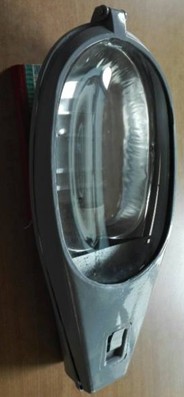

မီးအိမ်

Price - 25,000 Kyats

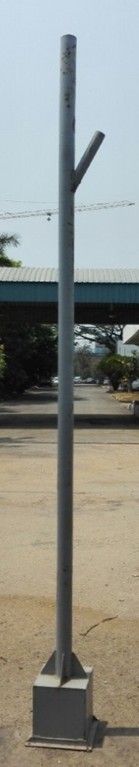

မီးတိုင်

Price - 20,000 Kyats

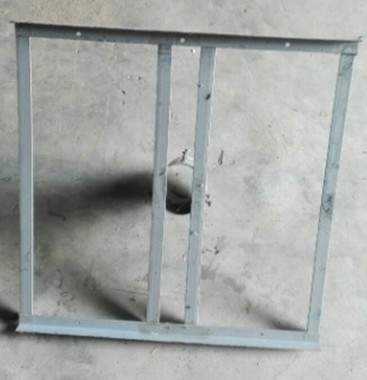

Frame

Price - 5,000 Kyats

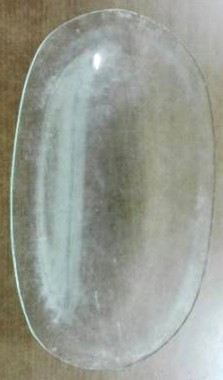

ဖန်အုပ်ဆောင်း

Price - 13,000 Kyats

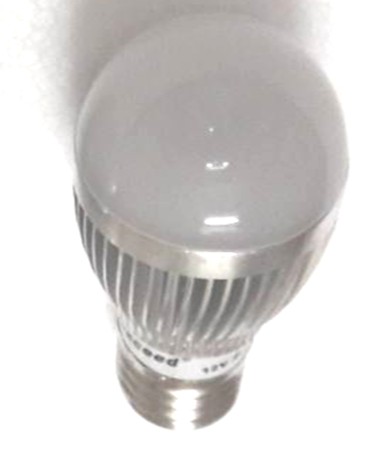

High Power LED



5 Watt (DC)

Price - 5,000 Kyats

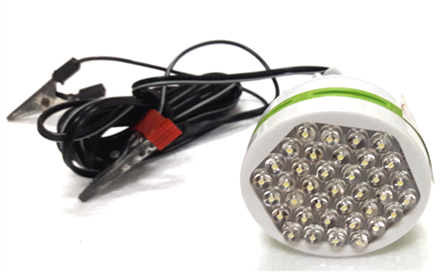

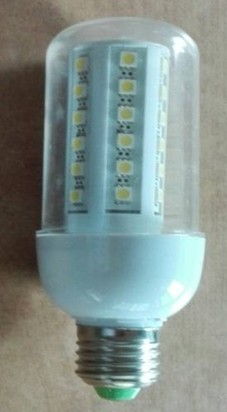

Low Power LED



3 Watt (DC)

Price - 2,200 Kyats





3 Watt (AC)

Price - 2,200 Kyats
